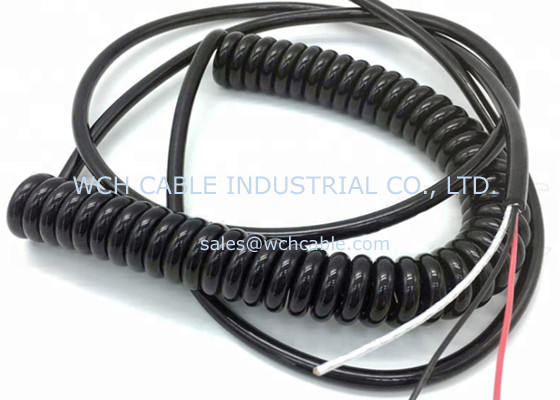

UL20937 TPU Sheathed Spiral Control Cable

UL20937 is good control TPU cable, for connection like Air Extractor, Automatic Control Equipment, Cabinet Control, etc.

• Style Number: UL20937
• Rated Temperature: 80°C
• Rated Voltage: 30V.
• Spark Voltage: 3KV.
• Dielectric Strength: 2000Vac for 60 seconds without breakdown.
• Flammability Grade: VW-1, FT1, FT2.

• Conductor Material: High purity copper wire strands, tinned or bare, optional.
• Conductor Size: 36AWG or more.
• Insulation: Thermoplastic TPU.
• Insulation Colour: Black, brown, red, orange, yellow, green, blue, violet, gray, white, pink, transparent, etc.
• Core Quantity: 2 cores or above.
• All individually insulated conductor wires cabled together, twisted lay length to be determined.
• Sheath: High quality Thermoplastic TPU material.
• Sheath Effect: Glossy, Matt, Half matt.
• Screen Shield: tinned copper wire strands, or spiral wrapped with aluminum foil.
• Shield Coverage: 65% minimum.
• Standard: AWM, UL758, UL1581.

• Agile routing and handling.
• High flexibility, suitable to be coiled as curly spiral cable.
• Uniform insulation thickness for easy stripping.
• Resistant to oil, organic solvent, strong acid, gas, and other chemicals.
• Hydrolysis resistant, excellent performance to be mounted with waterproof connector.
• UV resistant.
• Capable of handling temperature extremes to -50°C.

• Application: electronic equipment wiring purpose.
• Case examples: Air Extractor, Automatic Control Equipment, Cabinet Control, etc.

• No contain of halogens, phthalates, or heavy metals.
• RoHS, and RoHS2.0 compliant.
• Reach compliant.
• WEEE compliant.

Tag: UL20937, tpu cable, spiral cable
