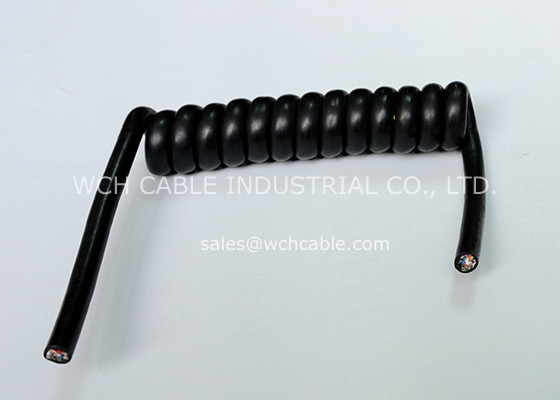

    UL20911 Vending Machine Extendable Spiral Cable

    Ask Lasest Price
    Brand Name : WCH Cable
    Model Number : UL20911
    Certification : UL, Cul, AWM
    Price : USD0.22 per piece
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 100,000pcs per week
    Delivery Time : 9 days for ready goods
    • Product Details
    • Company Profile

    UL20911 Vending Machine Extendable Spiral Cable

    UL20911 Vending Machine Extendable Spiral Cable


    UL20911 is good quality cable, for use of connection like Electric Guitar, Power Adapter, Vending Machine, etc.


    • Style Number: UL20911
    • Rated Temperature: 80°C
    • Rated Voltage: 300V.
    • Spark Voltage: 3KV.
    • Dielectric Strength: 2000Vac for 60 seconds without breakdown.
    • Flammability Grade: VW-1, FT1, FT2.
    • Conductor Material: High purity copper wire strands, tinned or bare, optional.
    • Conductor Size: 36AWG or more.
    • Insulation: Thermoplastic TPU.
    • Insulation Colour: Black, brown, red, orange, yellow, green, blue, violet, gray, white, pink, transparent, etc.
    • Core Quantity: 2 cores or above.
    • All individually insulated conductor wires cabled together, twisted lay length to be determined.
    • Sheath: High quality Thermoplastic TPU material.
    • Sheath Effect: Glossy, Matt, Half matt.
    • Screen Shield: tinned copper wire strands, or spiral wrapped with aluminum foil.
    • Shield Coverage: 65% minimum.
    • Standard: AWM, UL758, UL1581.
    • Agile routing and handling.
    • High flexibility, suitable to be coiled as curly spiral cable.
    • Uniform insulation thickness for easy stripping.
    • Resistant to oil, organic solvent, strong acid, gas, and other chemicals.
    • Hydrolysis resistant, excellent performance to be mounted with waterproof connector.
    • UV resistant.
    • Capable of handling temperature extremes to -50°C.
    • Application: electronic equipment wiring purpose.
    • Case examples: Electric Guitar, Power Adapter, Vending Machine, etc.
    • No contain of halogens, phthalates, or heavy metals.
    • RoHS, and RoHS2 compliant.
    • Reach compliant.
    • WEEE compliant.

    UL20911 Vending Machine Extendable Spiral Cable
