WCH Cable Industrial Co., Ltd. China Quality UL Cable Manufacturer, High Copper Purity Guaranteed
9 Years
| Ask Lasest Price | |
| Brand Name : | WCH Cable |
| Model Number : | UL21060 |
| Certification : | UL, CUL, CSA, AWM |
| Price : | USD 0.133 per meter |
| Payment Terms : | D/P, T/T, L/C, D/A, Western Union, MoneyGram |
| Supply Ability : | 300,000 meters per month |
| Delivery Time : | 9 days for ready goods |

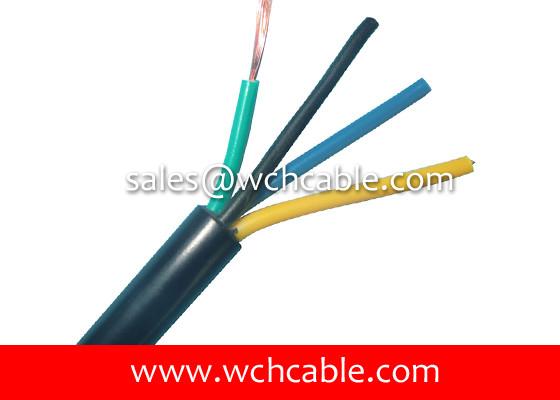

UL21060 Easy Bending Flex Cable PUR Jacket Rated 80C 600V
Conductor material: high purity copper wires
Conductor size: 32AWG to 4/0AWG, solid or stranded, optional.
Insulation material: AWM complying materials.
Jacket material: Polyurethane PUR.
Feature: very easy bending, flexible softness.
Parameters:
| Style Number | Conductor Quantity | Conductor Structure | Insulation Thickness | Insulation Diameter | Screen Coverage | Jacket Thickness | Overall Diameter | Conductor Resistance | |
| AWG | No/mm | mm | mm | % | mm | mm | Ω/KM | ||
| UL21060 | 2C | 30 | 7/0.100 | 0.23 | 0.80 | ≥65 | 1.15 | 3.90 | 381.00 |
| 2C | 28 | 7/0.127 | 0.23 | 0.90 | ≥65 | 1.15 | 4.10 | 239.00 | |
| 2C | 26 | 7/0.16 | 0.23 | 1.00 | ≥65 | 1.15 | 4.30 | 150.00 | |
| 2C | 24 | 11/0.16 | 0.23 | 1.10 | ≥65 | 1.15 | 4.50 | 94.20 | |
| 2C | 22 | 17/0.16 | 0.23 | 1.30 | ≥65 | 1.15 | 4.90 | 59.40 | |
| 2C | 20 | 21/0.178 | 0.23 | 1.50 | ≥65 | 1.15 | 5.30 | 36.70 | |
| 2C | 18 | 34/0.178 | 0.23 | 1.80 | ≥65 | 1.15 | 5.90 | 23.20 | |
| 2C | 16 | 26/0.25 | 0.23 | 2.10 | ≥65 | 1.15 | 6.50 | 14.60 | |
| 3C | 30 | 7/0.100 | 0.23 | 0.80 | ≥65 | 1.15 | 4.10 | 381.00 | |
| 3C | 28 | 7/0.127 | 0.23 | 0.90 | ≥65 | 1.15 | 4.20 | 239.00 | |
| 3C | 26 | 7/0.16 | 0.23 | 1.00 | ≥65 | 1.15 | 4.50 | 150.00 | |
| 3C | 24 | 11/0.16 | 0.23 | 1.10 | ≥65 | 1.15 | 4.70 | 94.20 | |
| 3C | 22 | 17/0.16 | 0.23 | 1.30 | ≥65 | 1.15 | 5.10 | 59.40 | |
| 3C | 20 | 21/0.178 | 0.23 | 1.50 | ≥65 | 1.15 | 5.50 | 36.70 | |
| 3C | 18 | 34/0.178 | 0.23 | 1.80 | ≥65 | 1.15 | 6.30 | 23.20 | |
| 4C | 30 | 7/0.100 | 0.23 | 0.80 | ≥65 | 1.15 | 5.50 | 381.00 | |
| 4C | 28 | 7/0.127 | 0.23 | 0.90 | ≥65 | 1.15 | 5.80 | 239.00 | |
| 4C | 26 | 7/0.16 | 0.23 | 1.00 | ≥65 | 1.15 | 6.00 | 150.00 | |
| 4C | 24 | 11/0.16 | 0.23 | 1.10 | ≥65 | 1.15 | 6.20 | 94.20 | |
| 4C | 22 | 17/0.16 | 0.23 | 1.30 | ≥65 | 1.15 | 6.70 | 59.40 | |
| 4C | 20 | 21/0.178 | 0.23 | 1.50 | ≥65 | 1.15 | 7.20 | 36.70 | |
| 5C | 30 | 7/0.100 | 0.23 | 0.80 | ≥65 | 1.15 | 5.70 | 381.00 | |
| 5C | 28 | 7/0.127 | 0.23 | 0.90 | ≥65 | 1.15 | 6.00 | 239.00 | |
| 5C | 26 | 7/0.16 | 0.23 | 1.00 | ≥65 | 1.15 | 6.40 | 150.00 | |
| 5C | 24 | 11/0.16 | 0.23 | 1.10 | ≥65 | 1.15 | 6.50 | 94.20 | |
| 5C | 22 | 17/0.16 | 0.23 | 1.30 | ≥65 | 1.15 | 7.10 | 59.40 | |
| 6C | 30 | 7/0.100 | 0.23 | 0.80 | ≥65 | 1.15 | 6.00 | 381.00 | |
| 6C | 28 | 7/0.127 | 0.23 | 0.90 | ≥65 | 1.15 | 6.40 | 239.00 | |
| 6C | 26 | 7/0.16 | 0.23 | 1.00 | ≥65 | 1.15 | 6.60 | 150.00 | |
| 6C | 24 | 11/0.16 | 0.23 | 1.10 | ≥65 | 1.15 | 6.90 | 94.20 | |
UL21060 Easy Bending Flex Cable PUR Jacket Rated 80C 600V
| Style Number: | UL21060 |
| Rated Grade: | 80 deg C, 600 Vac, Cable flame. |
| Conductor: | Above 99.99% High purity copper wires |
| Screen Shield: | Optional |
| Jacket: | Extruded Polyurethane PUR |
| Average thickness: | 45 mils (Ref.) |
| Minimum thickness: | 36 mils (Ref.) |
| Specification: | Detailed specification is to be customized per customer's requirement. |
| Executed Standard: | Appliance Wiring Material UL 758. |
| Application: | Internal Wiring and Interconnection of Assigned Equipments. |
| Manufacturer: | WCH Cable Industrial Co., Ltd. |
| Manufacture Location: | Dongguan, Guangdong, China |
| Other Name of the Cable: | UL Cable, PUR Cable, Control Cable, Equpment Cable, UL21060 Cable |
|
|
