WCH Cable Industrial Co., Ltd. China Quality UL Cable Manufacturer, High Copper Purity Guaranteed
10 Years
| Ask Lasest Price | |
| Brand Name : | WCH Cable |
| Model Number : | UL21140 |
| Certification : | UL, Cul, AWM |
| Price : | USD 0.145 per meter |
| Payment Terms : | D/P, T/T, L/C, D/A, Western Union, MoneyGram |
| Supply Ability : | 300,000 meters per month |
| Delivery Time : | 9 days for ready goods |

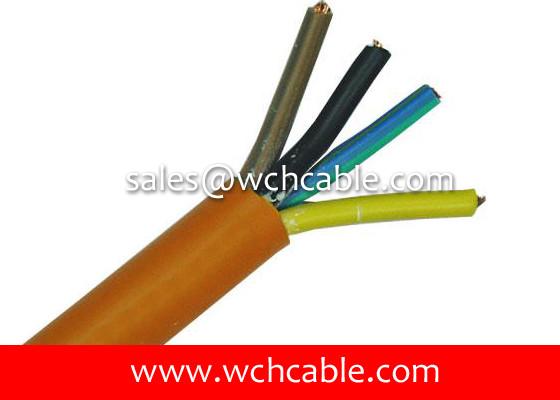

UL21140 Crane Control Panel Cable PUR Jacket Rated 60C 1000V
Conductor material: high purity copper wires, bare or tinned, optional.
Application: crane control panel connection.
Function: sunlight resistant.
Spiral shield or braided shield screen as adopted upon request.
| Style Number | Conductor Quantity | Conductor Structure | Insulation Thickness | Insulation Diameter | Shield Coverage | Jacket Thickness | Overall Diameter | Conductor Resistance | |
| AWG | No/mm | mm | mm | % | mm | mm | Ω/KM | ||
| UL21140 | 2C | 30 | 7/0.100 | 0.76 | 1.90 | ≥65 | 1.15 | 6.70 | 381.00 |
| 2C | 28 | 7/0.127 | 0.76 | 2.00 | ≥65 | 1.15 | 7.00 | 239.00 | |
| 2C | 26 | 7/0.16 | 0.76 | 2.10 | ≥65 | 1.15 | 7.10 | 150.00 | |
| 2C | 24 | 11/0.16 | 0.76 | 2.20 | ≥65 | 1.15 | 7.30 | 94.20 | |
| 2C | 22 | 17/0.16 | 0.76 | 2.40 | ≥65 | 1.15 | 7.70 | 59.40 | |
| 2C | 20 | 21/0.178 | 0.76 | 2.50 | ≥65 | 1.15 | 8.10 | 36.70 | |
| 2C | 18 | 34/0.178 | 0.76 | 2.80 | ≥65 | 1.15 | 8.70 | 23.20 | |
| 2C | 16 | 26/0.25 | 0.76 | 3.10 | ≥65 | 1.15 | 10.90 | 14.60 | |
| 3C | 30 | 7/0.100 | 0.76 | 1.90 | ≥65 | 1.15 | 8.60 | 381.00 | |
| 3C | 28 | 7/0.127 | 0.76 | 2.00 | ≥65 | 1.15 | 8.80 | 239.00 | |
| 3C | 26 | 7/0.16 | 0.76 | 2.10 | ≥65 | 1.15 | 9.00 | 150.00 | |
| 3C | 24 | 11/0.16 | 0.76 | 2.20 | ≥65 | 1.15 | 9.20 | 94.20 | |
| 3C | 22 | 17/0.16 | 0.76 | 2.40 | ≥65 | 1.15 | 9.60 | 59.40 | |
| 3C | 20 | 21/0.178 | 0.76 | 2.50 | ≥65 | 1.15 | 10.10 | 36.70 | |
| 3C | 18 | 34/0.178 | 0.76 | 2.80 | ≥65 | 1.15 | 10.70 | 23.20 | |
| 4C | 30 | 7/0.100 | 0.76 | 1.90 | ≥65 | 1.15 | 8.80 | 381.00 | |
| 4C | 28 | 7/0.127 | 0.76 | 2.00 | ≥65 | 1.15 | 9.00 | 239.00 | |
| 4C | 26 | 7/0.16 | 0.76 | 2.10 | ≥65 | 1.15 | 9.30 | 150.00 | |
| 4C | 24 | 11/0.16 | 0.76 | 2.20 | ≥65 | 1.15 | 9.60 | 94.20 | |
| 4C | 22 | 17/0.16 | 0.76 | 2.40 | ≥65 | 1.15 | 10.00 | 59.40 | |
| 4C | 20 | 21/0.178 | 0.76 | 2.50 | ≥65 | 1.15 | 10.50 | 36.70 | |
| 5C | 30 | 7/0.100 | 0.76 | 1.90 | ≥65 | 1.15 | 9.10 | 381.00 | |
| 5C | 28 | 7/0.127 | 0.76 | 2.00 | ≥65 | 1.15 | 9.40 | 239.00 | |
| 5C | 26 | 7/0.16 | 0.76 | 2.10 | ≥65 | 1.15 | 9.50 | 150.00 | |
| 5C | 24 | 11/0.16 | 0.76 | 2.20 | ≥65 | 1.15 | 9.90 | 94.20 | |
| 5C | 22 | 17/0.16 | 0.76 | 2.40 | ≥65 | 1.15 | 10.60 | 59.40 | |
| 6C | 30 | 7/0.100 | 0.76 | 1.90 | ≥65 | 1.15 | 9.50 | 381.00 | |
| 6C | 28 | 7/0.127 | 0.76 | 2.00 | ≥65 | 1.15 | 9.80 | 239.00 | |
| 6C | 26 | 7/0.16 | 0.76 | 2.10 | ≥65 | 1.15 | 10.10 | 150.00 | |
| 6C | 24 | 11/0.16 | 0.76 | 2.20 | ≥65 | 1.15 | 10.40 | 94.20 | |
UL21140 Crane Control Panel Cable PUR Jacket Rated 60C 1000V
| Style Number: | UL21140 |
| Rated Grade: | 60 deg C, 600 Vac, 1000 Vac, Cable flame. |
| Conductor: | Above 99.99% High purity copper wires |
| Screen Shield: | Optional |
| Jacket: | Extruded Polyurethane PUR |
| Average thickness: | 45 mils (Ref.) |
| Minimum thickness: | 36 mils (Ref.) |
| Specification: | Detailed specification is to be customized per customer's requirement. |
| Executed Standard: | Appliance Wiring Material UL 758. |
| Application: | Internal wiring of electronic equipment and appliances. |
| Manufacturer: | WCH Cable Industrial Co., Ltd. |
| Manufacture Location: | Dongguan, Guangdong, China |
| Other Name of the Cable: | UL Cable, PUR Cable, External Cable, High Voltage Cable, UL21140 Cable |
|
|
