WCH Cable Industrial Co., Ltd. China Quality UL Cable Manufacturer, High Copper Purity Guaranteed
9 Years
| Ask Lasest Price | |
| Brand Name : | WCH Cable |
| Model Number : | UL20234 |
| Certification : | UL, CUL, AWM |
| Price : | USD 0.133 per meter |
| Payment Terms : | D/P, T/T, L/C, D/A, Western Union, MoneyGram |
| Supply Ability : | 3000000 meters per month |
| Delivery Time : | 9 days for ready goods |

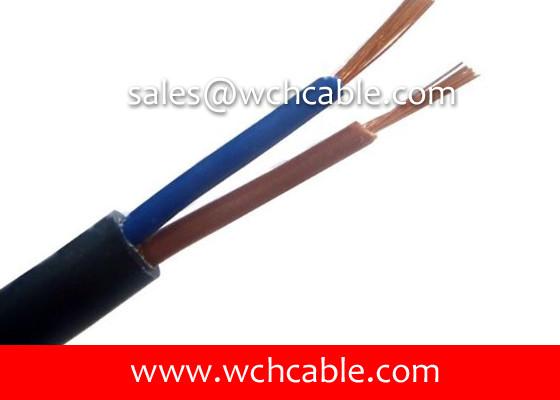

UL20234 Heavy Duty Cable PUR Jacket Rated 80C 1000V
Conductor: AWM complying materials.
Assembly: 2 or more conductors cabled together.
Screen Shield: braid shield, spiral wrap, optional.
Eco Status: RoHS & Reach compliant.
| Style Number | Conductor Quantity | Conductor Structure | Insulation Thickness | Insulation Diameter | Shield Coverage | Jacket Thickness | Overall Diameter | Conductor Resistance | |
| AWG | No/mm | mm | mm | % | mm | mm | Ω/KM | ||
| UL20234 | 2C | 30 | 7/0.100 | 0.76 | 1.90 | ≥65 | 1.15 | 6.20 | 381.00 |
| 2C | 28 | 7/0.127 | 0.76 | 2.00 | ≥65 | 1.15 | 6.40 | 239.00 | |
| 2C | 26 | 7/0.16 | 0.76 | 2.10 | ≥65 | 1.15 | 6.60 | 150.00 | |
| 2C | 24 | 11/0.16 | 0.76 | 2.20 | ≥65 | 1.15 | 6.80 | 94.20 | |
| 2C | 22 | 17/0.16 | 0.76 | 2.40 | ≥65 | 1.15 | 7.20 | 59.40 | |
| 2C | 20 | 21/0.178 | 0.76 | 2.50 | ≥65 | 1.15 | 7.40 | 36.70 | |
| 2C | 18 | 34/0.178 | 0.76 | 2.80 | ≥65 | 1.15 | 8.00 | 23.20 | |
| 2C | 16 | 26/0.25 | 0.76 | 3.10 | ≥65 | 1.15 | 8.50 | 14.60 | |
| 3C | 30 | 7/0.100 | 0.76 | 1.90 | ≥65 | 1.15 | 6.40 | 381.00 | |
| 3C | 28 | 7/0.127 | 0.76 | 2.00 | ≥65 | 1.15 | 6.60 | 239.00 | |
| 3C | 26 | 7/0.16 | 0.76 | 2.10 | ≥65 | 1.15 | 6.80 | 150.00 | |
| 3C | 24 | 11/0.16 | 0.76 | 2.20 | ≥65 | 1.15 | 7.00 | 94.20 | |
| 3C | 22 | 17/0.16 | 0.76 | 2.40 | ≥65 | 1.15 | 7.60 | 59.40 | |
| 3C | 20 | 21/0.178 | 0.76 | 2.50 | ≥65 | 1.15 | 7.80 | 36.70 | |
| 3C | 18 | 34/0.178 | 0.76 | 2.80 | ≥65 | 1.15 | 8.50 | 23.20 | |
| 4C | 30 | 7/0.100 | 0.76 | 1.90 | ≥65 | 1.15 | 7.00 | 381.00 | |
| 4C | 28 | 7/0.127 | 0.76 | 2.00 | ≥65 | 1.15 | 7.20 | 239.00 | |
| 4C | 26 | 7/0.16 | 0.76 | 2.10 | ≥65 | 1.15 | 7.40 | 150.00 | |
| 4C | 24 | 11/0.16 | 0.76 | 2.20 | ≥65 | 1.15 | 7.60 | 94.20 | |
| 4C | 22 | 17/0.16 | 0.76 | 2.40 | ≥65 | 1.15 | 8.20 | 59.40 | |
| 4C | 20 | 21/0.178 | 0.76 | 2.50 | ≥65 | 1.15 | 8.50 | 36.70 | |
| 5C | 30 | 7/0.100 | 0.76 | 1.90 | ≥65 | 1.15 | 7.60 | 381.00 | |
| 5C | 28 | 7/0.127 | 0.76 | 2.00 | ≥65 | 1.15 | 7.80 | 239.00 | |
| 5C | 26 | 7/0.16 | 0.76 | 2.10 | ≥65 | 1.15 | 8.00 | 150.00 | |
| 5C | 24 | 11/0.16 | 0.76 | 2.20 | ≥65 | 1.15 | 8.40 | 94.20 | |
| 5C | 22 | 17/0.16 | 0.76 | 2.40 | ≥65 | 1.15 | 8.80 | 59.40 | |
| 6C | 30 | 7/0.100 | 0.76 | 1.90 | ≥65 | 1.15 | 8.00 | 381.00 | |
| 6C | 28 | 7/0.127 | 0.76 | 2.00 | ≥65 | 1.15 | 8.40 | 239.00 | |
| 6C | 26 | 7/0.16 | 0.76 | 2.10 | ≥65 | 1.15 | 8.60 | 150.00 | |
| 6C | 24 | 11/0.16 | 0.76 | 2.20 | ≥65 | 1.15 | 9.00 | 94.20 | |
UL20234 Heavy Duty Cable PUR Jacket Rated 80C 1000V
| Style Number: | UL20234 |
| Rated Grade: | 80 deg C, 600, 1000 Vac, Cable flame. |
| Conductor: | Above 99.99% High purity copper wires |
| Screen Shield: | Optional |
| Jacket: | Extruded Polyurethane PUR |
| Average thickness: | 45 mils (Ref.) |
| Minimum thickness: | 36 mils (Ref.) |
| Specification: | Detailed specification is to be customized per customer's requirement. |
| Executed Standard: | Appliance Wiring Material UL 758. |
| Application: | External interconnection of electronic equipment. |
| Manufacturer: | WCH Cable Industrial Co., Ltd. |
| Manufacture Location: | Dongguan, Guangdong, China |
| Other Name of the Cable: | UL Cable, PUR Cable, Flexible Cable, 1000V Cable, High Voltage Cable, UL20234 Cable |
|
|
