WCH Cable Industrial Co., Ltd. China Quality UL Cable Manufacturer, High Copper Purity Guaranteed
9 Years
| Ask Lasest Price | |
| Brand Name : | WCH Cable |
| Model Number : | UL20417 |
| Certification : | UL, CUL, AWM |
| Price : | USD 0.16 per meter |
| Payment Terms : | D/P, T/T, L/C, D/A, Western Union, MoneyGram |
| Supply Ability : | 300,000 meters per month |
| Delivery Time : | 9 days for ready goods |

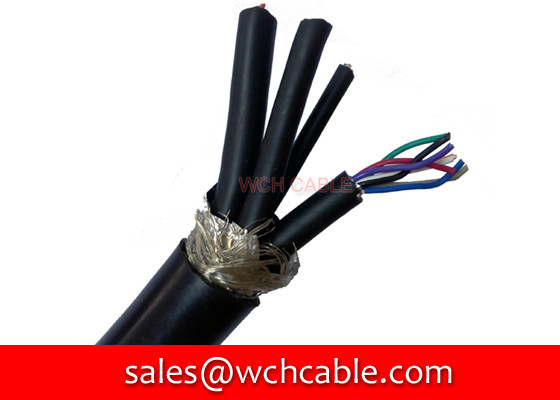

UL20417 Operator Cabin Cable PUR Jacket Rated 60C 30V
Conductor: pure copper wires
Insulation: AWM compliant materials
Softness: flexible, easy bending
Uniform thickness for smooth stripping process of assembly.
| Style Number | Conductor Quantity | Conductor Size | Insulation Thickness | Insulation Diameter | Screen Coverage | Jacket Thickness | Overall Diameter | Conductor Resistance | |
| AWG | No/mm | mm | mm | % | mm | mm | Ω/KM | ||
| UL20417 | 2C | 30 | 7/0.100 | 0.23 | 0.80 | ≥65 | 0.76 | 3.20 | 381.00 |
| 2C | 28 | 7/0.127 | 0.23 | 0.90 | ≥65 | 0.76 | 3.40 | 239.00 | |
| 2C | 26 | 7/0.16 | 0.23 | 1.00 | ≥65 | 0.76 | 3.60 | 150.00 | |
| 2C | 24 | 11/0.16 | 0.23 | 1.10 | ≥65 | 0.76 | 3.80 | 94.20 | |
| 2C | 22 | 17/0.16 | 0.23 | 1.30 | ≥65 | 0.76 | 4.20 | 59.40 | |
| 2C | 20 | 21/0.178 | 0.23 | 1.50 | ≥65 | 0.76 | 4.60 | 36.70 | |
| 2C | 18 | 34/0.178 | 0.23 | 1.80 | ≥65 | 0.76 | 5.20 | 23.20 | |
| 2C | 16 | 26/0.25 | 0.23 | 2.10 | ≥65 | 0.76 | 5.80 | 14.60 | |
| 3C | 30 | 7/0.100 | 0.23 | 0.80 | ≥65 | 0.76 | 3.40 | 381.00 | |
| 3C | 28 | 7/0.127 | 0.23 | 0.90 | ≥65 | 0.76 | 3.50 | 239.00 | |
| 3C | 26 | 7/0.16 | 0.23 | 1.00 | ≥65 | 0.76 | 3.80 | 150.00 | |
| 3C | 24 | 11/0.16 | 0.23 | 1.10 | ≥65 | 0.76 | 4.00 | 94.20 | |
| 3C | 22 | 17/0.16 | 0.23 | 1.30 | ≥65 | 0.76 | 4.40 | 59.40 | |
| 3C | 20 | 21/0.178 | 0.23 | 1.50 | ≥65 | 0.76 | 4.80 | 36.70 | |
| 3C | 18 | 34/0.178 | 0.23 | 1.80 | ≥65 | 0.76 | 5.50 | 23.20 | |
| 4C | 30 | 7/0.100 | 0.23 | 0.80 | ≥65 | 0.76 | 4.80 | 381.00 | |
| 4C | 28 | 7/0.127 | 0.23 | 0.90 | ≥65 | 0.76 | 5.10 | 239.00 | |
| 4C | 26 | 7/0.16 | 0.23 | 1.00 | ≥65 | 0.76 | 5.30 | 150.00 | |
| 4C | 24 | 11/0.16 | 0.23 | 1.10 | ≥65 | 0.76 | 5.50 | 94.20 | |
| 4C | 22 | 17/0.16 | 0.23 | 1.30 | ≥65 | 0.76 | 6.00 | 59.40 | |
| 4C | 20 | 21/0.178 | 0.23 | 1.50 | ≥65 | 0.76 | 6.50 | 36.70 | |
| 5C | 30 | 7/0.100 | 0.23 | 0.80 | ≥65 | 0.76 | 5.00 | 381.00 | |
| 5C | 28 | 7/0.127 | 0.23 | 0.90 | ≥65 | 0.76 | 5.30 | 239.00 | |
| 5C | 26 | 7/0.16 | 0.23 | 1.00 | ≥65 | 0.76 | 5.60 | 150.00 | |
| 5C | 24 | 11/0.16 | 0.23 | 1.10 | ≥65 | 0.76 | 5.80 | 94.20 | |
| 5C | 22 | 17/0.16 | 0.23 | 1.30 | ≥65 | 0.76 | 6.40 | 59.40 | |
| 6C | 30 | 7/0.100 | 0.23 | 0.80 | ≥65 | 0.76 | 5.30 | 381.00 | |
| 6C | 28 | 7/0.127 | 0.23 | 0.90 | ≥65 | 0.76 | 5.60 | 239.00 | |
| 6C | 26 | 7/0.16 | 0.23 | 1.00 | ≥65 | 0.76 | 5.90 | 150.00 | |
| 6C | 24 | 11/0.16 | 0.23 | 1.10 | ≥65 | 0.76 | 6.20 | 94.20 | |
UL20417 Operator Cabin Cable PUR Jacket Rated 60C 30V
| Style Number: | UL20417 |
| Rated Grade: | 60 deg C, 30 Vac, Cable flame. |
| Conductor: | Above 99.99% High purity copper wires |
| Screen Shield: | Optional |
| Jacket: | Extruded Polyurethane PUR |
| Average thickness: | 30 mils (Ref.) |
| Minimum thickness: | 24 mils (Ref.) |
| Specification: | Detailed specification is to be customized per customer's requirement. |
| Executed Standard: | Appliance Wiring Material UL 758. |
| Application: | External wiring interconnection of electronic equipment. |
| Manufacturer: | WCH Cable Industrial Co., Ltd. |
| Manufacture Location: | Dongguan, Guangdong, China |
| Other Name of the Cable: | UL Cable, PUR Cable, Polyurethane Cable, 30V Cable, UL20417 Cable |
Tag: pur cable, pur jacketed cable
|
|
