    UL20951 HVAC Control Spiral Cable 105C 300V

    Ask Lasest Price
    Brand Name : WCH Cable
    Model Number : UL20951
    Certification : UL, Cul, AWM
    Price : USD0.335 per piece
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 100,000pcs per week
    Delivery Time : 9 days for ready goods
    • Product Details
    • Company Profile

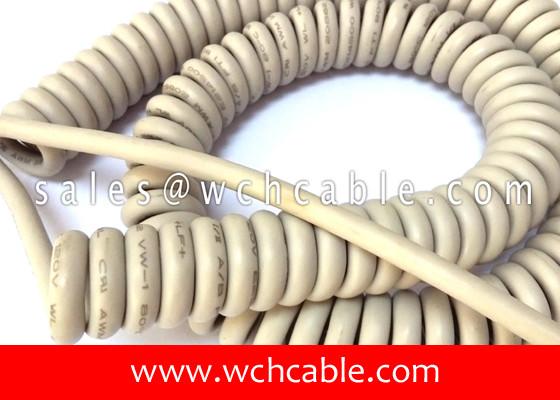

    UL20951 HVAC Control Spiral Cable 105C 300V

    UL20951 HVAC Control Spiral Cable 105C 300V

    Conductor: High purity copper wire, tinned or bare, stranded or solid.
    Insulation: Quality materials complying with AWM standard.
    Screen Shield: Foil, spiral shield, copper braiding, optional.
    Jacket Material: Thermoplastic Polyurethane TPU.
    Standard: Appliance Wiring Material UL758.
    Rated Temperature: 105 deg C.
    Rated Voltage: 300V.
    Flammability: UL VW-1, CUL FT1, FT2 passed.
    Uniform insulation thickness for smooth stripping.
    Other approvals: Cul, CSA / Canadian Standards Association.
    Application: HVAC Control.
    Origin: Dongguan, China.


    Style NumberCore QuantityCopper ConductorInsulation ThicknessInsulation DiameterJacket ThicknessOverall DiameterConductor Resistance
    AWGNo/mmmmmmmmmmΩ/KM
    UL209512C307/0.1000.761.901.156.70381.00
    2C287/0.1270.762.001.157.00239.00
    2C267/0.160.762.101.157.10150.00
    2C2411/0.160.762.201.157.3094.20
    2C2217/0.160.762.401.157.7059.40
    2C2021/0.1780.762.501.158.1036.70
    2C1834/0.1780.762.801.158.7023.20
    2C1626/0.250.763.101.1510.9014.60
    3C307/0.1000.761.901.158.60381.00
    3C287/0.1270.762.001.158.80239.00
    3C267/0.160.762.101.159.00150.00
    3C2411/0.160.762.201.159.2094.20
    3C2217/0.160.762.401.159.6059.40
    3C2021/0.1780.762.501.1510.1036.70
    3C1834/0.1780.762.801.1510.7023.20
    4C307/0.1000.761.901.158.80381.00
    4C287/0.1270.762.001.159.00239.00
    4C267/0.160.762.101.159.30150.00
    4C2411/0.160.762.201.159.6094.20
    4C2217/0.160.762.401.1510.0059.40
    4C2021/0.1780.762.501.1510.5036.70
    5C307/0.1000.761.901.159.10381.00
    5C287/0.1270.762.001.159.40239.00
    5C267/0.160.762.101.159.50150.00
    5C2411/0.160.762.201.159.9094.20
    5C2217/0.160.762.401.1510.6059.40
    6C307/0.1000.761.901.159.50381.00
    6C287/0.1270.762.001.159.80239.00
    6C267/0.160.762.101.1510.10150.00
    6C2411/0.160.762.201.1510.4094.20
