    UL21143 Lighting Industry LSZH Cable 80C 600V

    Ask Lasest Price
    Brand Name : WCH Cable
    Model Number : UL21143
    Certification : UL Certificate
    Price : USD 0.15 per meter
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 3000000 meter per Month
    Delivery Time : 9 days for ready goods
    • Product Details
    • Company Profile

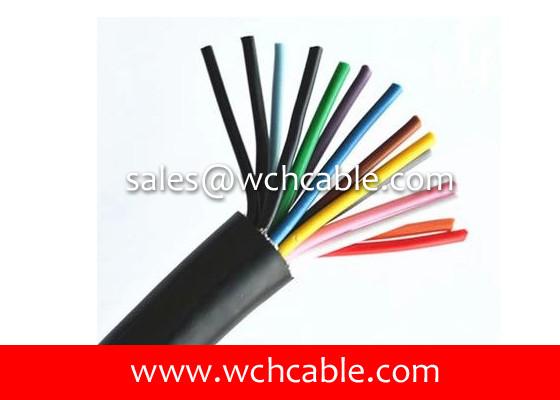

    UL21143 Lighting Industry LSZH Cable 80C 600V

    UL21143 Lighting Industry LSZH Cable 80C 600V


    Conductor: High Purity of Copper Wire, Stranded or Solid.

    Insulation: HDPE, XLPE, FRPE, PP

    Jacket: Extruded FRPE


    Rated Temperature: 80C

    Rated Voltage: 600V

    Flame Retardant Grade: VW-1, FT-1, FT-2

    Executed Standard: Appliance Wiring Material UL758.


    Style NumberConductor QuantityConductor SizeConductor StrandsInsulation ThicknessInsulation DiameterJacket ThicknessOverall DiameterConductor Resistance
    AWGNo/mmmmmmmmmmΩ/KM
    UL211432C307/0.1000.230.800.763.60381.00
    2C287/0.1270.230.900.763.90239.00
    2C267/0.160.231.000.764.00150.00
    2C2411/0.160.231.100.764.2094.20
    2C2217/0.160.231.300.764.6059.40
    2C2021/0.1780.231.500.765.0036.70
    2C1834/0.1780.231.800.765.6023.20
    2C1626/0.250.232.000.767.8014.60
    3C307/0.1000.230.800.765.50381.00
    3C287/0.1270.230.900.765.70239.00
    3C267/0.160.231.000.765.90150.00
    3C2411/0.160.231.100.766.1094.20
    3C2217/0.160.231.300.766.5059.40
    3C2021/0.1780.231.500.767.0036.70
    3C1834/0.1780.231.800.767.6023.20
    4C307/0.1000.230.800.765.70381.00
    4C287/0.1270.230.900.765.90239.00
    4C267/0.160.231.000.766.20150.00
    4C2411/0.160.231.100.766.5094.20
    4C2217/0.160.231.300.766.9059.40
    4C2021/0.1780.231.500.767.4036.70
    5C307/0.1000.230.800.766.00381.00
    5C287/0.1270.230.900.766.30239.00
    5C267/0.160.231.000.766.40150.00
    5C2411/0.160.231.100.766.8094.20
    5C2217/0.160.231.300.767.4059.40
    6C307/0.1000.230.800.766.40381.00
    6C287/0.1270.230.900.766.70239.00
    6C267/0.160.231.000.767.00150.00
    6C2411/0.160.231.100.767.3094.20
