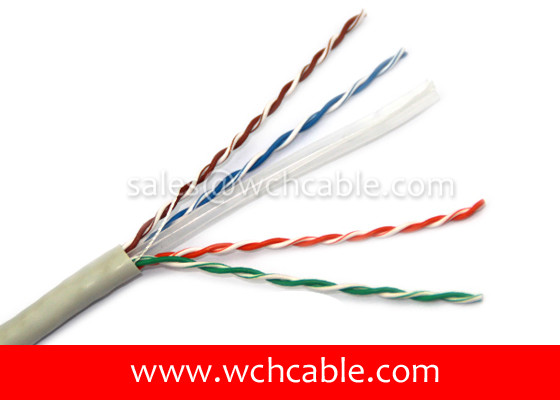

UL Lan Cable Cat6 UTP Solid 23AWG 4Pairs OD6.5mm
| PRODUCT SPECIFICATION | Color | |||||||
| 1/0.575X4P Cat6 UTP LAN CABLE | insulation | |||||||
| Cores: Pairs | ||||||||
| 1P: Blue & White/Blue | ||||||||
| 2P: Orange & White/Orange | ||||||||
| 3P: Green & White/Green | ||||||||
| 4P: Brown & White/Brown | ||||||||
| Jacket | ||||||||
| Gray | ||||||||
| Marking | Performance | |||||||
| Jacket marking: per customer's confirmation. | Electrical Characteristics(20℃) | |||||||
| Max, Conductor DC Resistance(Ω/km) #23:89 Min, Insulation Resistance(Ω/km) PE:100M Dielectric Strength AC-500V/1 Min Impedance 100±15Ω DC Resistance max Ω/1000ft 28.6 DC Resistance Unbalance of a pair 5%man Propagation Delay Slew 45ns/100m | ||||||||
| Description | ||||||||
| Rated Temperature: 70℃ | ||||||||
| Application: Telephone and other communication circuits such as voice,data,and audio for on-premise customer systems. | ||||||||
| Reference Standard: The customer‘s specilication. | Frequency | ATT | NEXT | PSNEXT | ELFEXT | PSELFEXT | RL | |
| (Mhz) | (db/100m) | (db) | (db) | (db) | (db) | (db) | ||
| 1 | 2.4 | 65.3 | 62.3 | 63.8 | 60.8 | 20 | ||
| Construction | 10 | 7.8 | 50.3 | 47.3 | 43.8 | 40.8 | 25 | |
| Conductor: Solid Stranded Bare Copper | 16 | 9.9 | 47.3 | 44.4 | 39.7 | 36.7 | 25 | |
| 20 | 11.1 | 45.8 | 42.8 | 37.7 | 34.7 | 25 | ||
| 4 Twisted Pairs: 8C | 25 | 12.5 | 44.4 | 41.3 | 35.8 | 32.8 | 24.2 | |
| Gauge: 23AWG | 31.25 | 14.1 | 42.9 | 39.9 | 33.9 | 30.9 | 23.3 | |
| Construction(mm): 1/0.575 | 62.5 | 20.4 | 38.4 | 35.4 | 27.8 | 24.8 | 20.7 | |
| Stranded Diameter(mm): 0.575 | 100 | 26.4 | 35.3 | 32.3 | 23.8 | 20.8 | 19 | |
| Insulation: PE | 200 | 28.2 | 46.6 | 44.6 | 27.8 | 24.7 | 23 | |
| Nom Thickness(mm): 0.224 | 250 | 39.5 | 29.3 | 26.3 | 13.8 | 12.8 | 16.3 | |
| Insulation Dia(±0.05mm): 1.024 | Mechanicall Characteristics: | |||||||
| Rip cord: nylon | Test Object Jacket | |||||||
| Jacket: PVC | Test Material PVC | |||||||
| Nom.Thickness(mm): 0.65 | WCH CABLE INDUSTRIAL CO.,LTD. | |||||||
| Outer Dia.(±0.2mm): 6.5 | Sample No. | Spec No. | ||||||
| Weight(kg/1000ft): 15 | Customer | Rev. | ||||||
| Date | Page | 1 of 1 | ||||||
|
|
