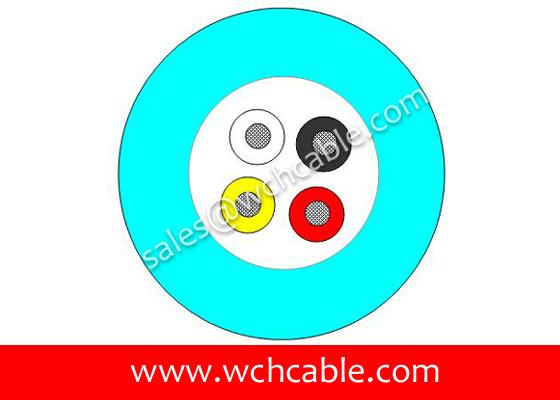

600V UL Power Cord Cable SO 18AWG 4C Tinned Conductors OD9.95mm CPE Black

WCH Cable Industrial Co., Ltd.
Contact Now
    Buy cheap 600V UL Power Cord Cable SO 18AWG 4C Tinned Conductors OD9.95mm CPE Black from wholesalers

    Buy cheap 600V UL Power Cord Cable SO 18AWG 4C Tinned Conductors OD9.95mm CPE Black from wholesalers
    • Buy cheap 600V UL Power Cord Cable SO 18AWG 4C Tinned Conductors OD9.95mm CPE Black from wholesalers

    600V UL Power Cord Cable SO 18AWG 4C Tinned Conductors OD9.95mm CPE Black

    Ask Lasest Price
    Brand Name : WCH Cable
    Model Number : SO 18AWG 4C OD9.95 BLK
    Certification : UL & CUL Certificate
    Price : USD0.2219
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 3000000 meters per month
    Delivery Time : 9 days for ready goods
    • Product Details
    • Company Profile

    600V UL Power Cord Cable SO 18AWG 4C Tinned Conductors OD9.95mm CPE Black

    ConductorSpecification(AWG)18
    Section Area(mm²)0.8244
    Material Tinned Stranded Copper
    Configuration(mm)TS41/0.16±0.007
    Conductor Quantity 4C
    InsulationAverage Thickness(mm)0.76
    Minimum Thickness(mm)0.65
    Over Diameter(mm)2.80
    Material EP (RoHS)
    Colour White, Black, Red, Yellow
    JacketAverage Thickness(mm)1.52
    Minimum Thickness(mm)1.22
    Overall Diameter(mm)9.95±0.30
    Material CPE Rubber (RoHS)
    Colour Black
    Electrical
    Capability
    Rated Temperature(℃)105
    Rated Voltage(V)600
    Rated Currency(A)10
    Conductor Resistance(Ω/KM 20℃)23.20
    Insulation Resistance(MΩ/KM 20℃)>2.50
    FlammabilityFire Retardance VW-1
      CUL FT1
    ApprovalUL Style Number SO
    Reference Standard UL 62
    Environmental Standard Lead Free
      RoHS & Reach Compliant
