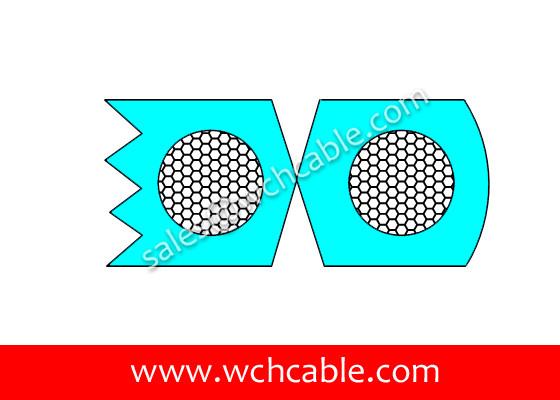

300V UL Power Cord Cable SPT-1 18AWG 2C Tinned Conductors OD2.70x5.40mm PVC Black

WCH Cable Industrial Co., Ltd.
Contact Now
    Buy cheap 300V UL Power Cord Cable SPT-1 18AWG 2C Tinned Conductors OD2.70x5.40mm PVC Black from wholesalers

    Buy cheap 300V UL Power Cord Cable SPT-1 18AWG 2C Tinned Conductors OD2.70x5.40mm PVC Black from wholesalers
    • Buy cheap 300V UL Power Cord Cable SPT-1 18AWG 2C Tinned Conductors OD2.70x5.40mm PVC Black from wholesalers

    300V UL Power Cord Cable SPT-1 18AWG 2C Tinned Conductors OD2.70x5.40mm PVC Black

    Ask Lasest Price
    Brand Name : WCH Cable
    Model Number : SPT-1 18AWG 2C OD2.70x5.40 BLK
    Certification : UL & CUL Certificate
    Price : USD0.1323
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 3000000 meters per month
    Delivery Time : 9 days for ready goods
    • Product Details
    • Company Profile

    300V UL Power Cord Cable SPT-1 18AWG 2C Tinned Conductors OD2.70x5.40mm PVC Black


    ConductorSpecification(AWG)18
    Section Area(mm²)0.8244
    Material Tinned Stranded Copper
    Configuration(mm)AS41/0.16±0.007
    Conductor Quantity 2F
    InsulationAverage Thickness(mm)0.76
    Minimum Thickness(mm)0.66
    Over Diameter(mm)2.70±0.15*5.40±0.20
    Material PVC (RoHS)
    Colour Black
    Electrical
    Capability
    Rated Temperature(℃)105
    Rated Voltage(V)300
    Conductor Resistance(Ω/KM 20℃)23.20
    Insulation Resistance(MΩ/KM 20℃)10
    FlammabilityFire Retardance VW-1
      CUL FT1
    ApprovalUL Style Number SPT-1
    Environmental Standard Lead Free
      RoHS & Reach Compliant

    Quality 300V UL Power Cord Cable SPT-1 18AWG 2C Tinned Conductors OD2.70x5.40mm PVC Black for sale
