TPU Cable UL20280 22AWG 5Cores OD5.1mm Matt Black (PVC Wire)

WCH Cable Industrial Co., Ltd.
Contact Now
    Buy cheap TPU Cable UL20280 22AWG 5Cores OD5.1mm Matt Black (PVC Wire) from wholesalers

    Buy cheap TPU Cable UL20280 22AWG 5Cores OD5.1mm Matt Black (PVC Wire) from wholesalers
    • Buy cheap TPU Cable UL20280 22AWG 5Cores OD5.1mm Matt Black (PVC Wire) from wholesalers

    TPU Cable UL20280 22AWG 5Cores OD5.1mm Matt Black (PVC Wire)

    Ask Lasest Price
    Brand Name : WCH Cable
    Model Number : UL20280
    Certification : UL, Cul, AWM
    Price : USD0.178 per meter
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 3000000 meters per month
    Delivery Time : 9 days for ready goods
    • Product Details
    • Company Profile

    TPU Cable UL20280 22AWG 5Cores OD5.1mm Matt Black (PVC Wire)

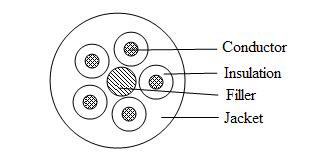

    ConductorSpecification(AWG)22
    Section Area(mm²)0.3418
    Material Tinned stranded copper
    Configuration(mm)TS17/0.16±0.007
    InsulationAve Thickness(mm)0.26
    Min Thickness(mm)0.20
    Over Diameter(mm)1.30±0.10
    Material PVC (RoHS)
    Colour White, Black, Red, Yellow, Blue
    AssemblyScreen Shield --
    Filler 10S/12SOL*1pcs Cotton Rope
    Cotton Papper --
    JacketAve Thickness(mm)0.80
    Min Thickness(mm)0.64
    Over Diameter(mm)5.10±0.30
    Material Polyurethane TPU (RoHS)
    Colour Black
    Surface Effect Matt
    Electrical
    Capability
    Rated Temperature(℃)80
    Rated Voltage(V)300
    Conductor Resistance(Ω/KM 20℃)59.4
    Insulation Resistance(MΩ/KM 20℃)10
    ApprovalUL Style Number 20280
    CSA Grade I/II A
    Environmental Standard Lead Free
      RoHS & Reach Compliant

    Spec Download: UL20280, UL20280 specification
