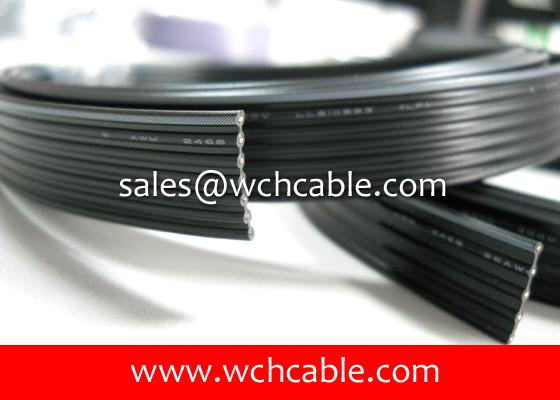

    PVC Flat Ribbon Cable UL2468 #24AWG 10Pins 3.96mm Pitch

    Ask Lasest Price
    Brand Name : WCH Cable
    Model Number : UL2468
    Certification : UL, Cul, CSA, AWM
    Price : USD0.2532 per meter
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 5,000,000 meters per month
    Delivery Time : 9 days for ready goods
    • Product Details
    • Company Profile

    PVC Flat Ribbon Cable UL2468 #24AWG 10Pins 3.96mm Pitch


    ConductorSpecification(AWG)24
    Section Area(mm²)0.2199
    Material Tinned stranded copper
    Configuration(mm)TS7/0.20±0.007
    InsulationPitch Distance(mm)3.96
    Ave Thickness(mm)0.42
    Min Thickness(mm)0.35
    Over Diameter(mm)1.50±0.10
    Material PVC (RoHS)
    Colour Black (White stripe)
    Electrical
    Capability
    Rated Temperature(℃)80
    Rated Voltage(V)300
    Conductor Resistance(Ω/KM 20℃)94.2
    Insulation Resistance(MΩ/KM 20℃)10
    FlammabilityUL Fire Resistant VW-1
    CSA Fire Resistant FT-1
    ApprovalUL Style Number 2468
    CSA Grade I / A
    Based Standard Lead Free
    Environmental Standard RoHS & Reach Compliant
