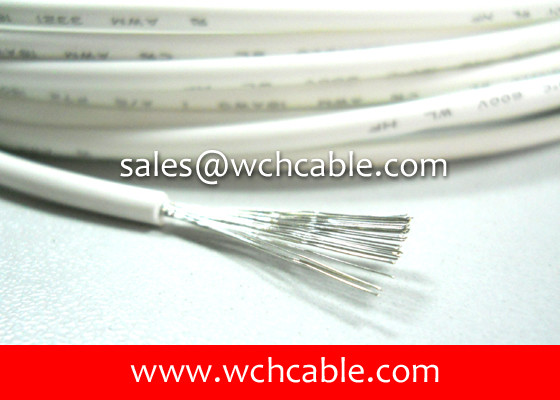

    UL3289 Medium Voltage 600V XLPE Insulated Wire Rated 150℃ Lead Free

    Ask Lasest Price
    Brand Name : WCH Cable
    Model Number : UL3289
    Certification : UL Certificate
    Price : USD 0.03 per meter
    Payment Terms : L/C, D/A, D/P, T/T
    Supply Ability : 4000000 meters per month
    Delivery Time : 9 days for ready goods
    • Product Details
    • Company Profile

    UL3289 Medium Voltage 600V XLPE Insulated Wire Rated 150℃ Lead Free

    UL3289 Medium Voltage 600V XLPE Insulated Wire Rated 150℃ Lead Free


    Tinned, annealed, stranded or solid copper conductor.

    XL-PE insulation.

    Rated temperature: 150℃. Rated voltage: 600/750volts.

    Uniform thickness of wire to ensure easy stripping and cutting.

    UL VW-1 vertical flame test verified.

    Top coated conductor is available.


    Application: For general purpose internal wiring of electronic or electrical equipment.



    UL Style & CSA TypeConductorInsulation
    Thickness
    Overall
    Diameter
    Standard Put-upConductor
    Resistance
    AWGNo/mmmmmmFeet/reelMeter/reellΩ/KM
    UL3289
    (Stranded)
    267/0.1600.762.102000610150.00
    2411/0.1600.762.20200061094.20
    2217//0.1600.762.40200061059.40
    2021/0.1780.762.50200061036.70
    1834/0.1780.762.80200061023.20
    1626/0.2500.763.10100030516.57
    1441/0.2500.763.5010003058.96
    1265/0.2500.764.0010003055.64
    10105/0.2500.764.6010003053.55
    UL3289
    (Top-coated)
    267/0.1600.762.102000610150.00
    247/0.2000.762.20200061094.20
    227/0.2500.762.40200061059.40
    UL3289
    (Solid)
    261/0.4040.761.952000610150.00
    241/0.5110.762.15200061094.20
    221/0.6430.762.30200061059.40
    201/0.8130.762.50200061036.70
    181/1.0240.762.70200061023.20
