WCH Cable Industrial Co., Ltd. China Quality UL Cable Manufacturer, High Copper Purity Guaranteed
9 Years
| Ask Lasest Price | |
| Brand Name : | WCH Cable |
| Model Number : | UL20820 |
| Certification : | UL, Cul, AWM |
| Price : | USD0.10 per meter |
| Payment Terms : | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability : | 3000000 meters per month |
| Delivery Time : | 9 days for ready goods |
Approval style number: UL20820
Rated temperature and voltage: 90 deg C, 300 Vac, Cable flame.
Conductor: pure copper wire conductor.
Insulation material: PVC, PP, HDPE, LDPE, SR-PVC, XL-PE, XL-PVC, TPE, FRPE.
Jacket material: Extruded TPE.
Applied standard: Appliance Wiring Material UL 758.
Application: As internal wiring or external interconnection of electronic equipment (such as computers and business machines).
Origin: Dongguan, China

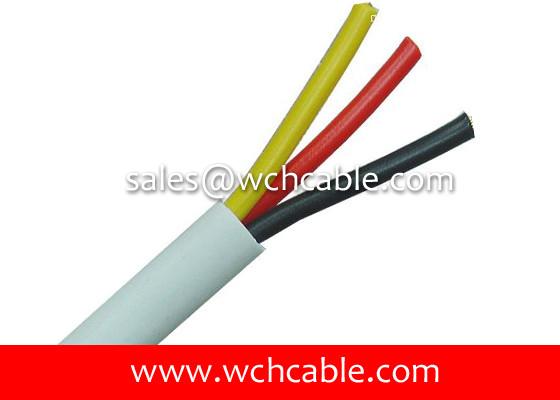

Equivalent approval style numbers of 300V Crane Machine Flexible TPE Cable:
| Approval Style | Temperature | Voltage | Material | Brand |
| UL 20820 | 90 | 300 | Thermoplastic Elastomer / TPE | WCH Cable |
| UL 21484 | 90 | 300 | Thermoplastic Elastomer / TPE | WCH Cable |
| UL 20139 | 85 | 300 | Thermoplastic Elastomer / TPE | WCH Cable |
| UL 20626 | 90 | 300 | Thermoplastic Elastomer / TPE | WCH Cable |
Parameters of 300V Crane Machine Flexible TPE Cable:
| Approval Style Number | Cores | Conductor | Insulation Thickness | Nom.Dia | Shield Coverage | Jacket Thickness | Overall Diameter | Conductor Resistance | |
| AWG | No/mm | mm | mm | % | mm | mm | Ω/KM | ||
| UL20820 | 2C | 30 | 7/0.100 | 0.23 | 0.80 | >=65 | 1.15 | 3.60 | 381.00 |
| 28 | 7/0.127 | 0.23 | 0.90 | >=65 | 1.15 | 3.80 | 239.00 | ||
| 26 | 7/0.16 | 0.23 | 1.00 | >=65 | 1.15 | 3.90 | 150.00 | ||
| 24 | 11/0.16 | 0.23 | 1.10 | >=65 | 1.15 | 4.00 | 94.20 | ||
| 22 | 17/0.16 | 0.23 | 1.30 | >=65 | 1.15 | 4.40 | 59.40 | ||
| 20 | 21/0.178 | 0.23 | 1.50 | >=65 | 1.15 | 4.80 | 36.70 | ||
| 18 | 34/0.178 | 0.23 | 1.80 | >=65 | 1.15 | 5.40 | 23.20 | ||
| 16 | 26/0.25 | 0.23 | 2.00 | >=65 | 1.15 | 7.60 | 14.60 | ||
| UL20820 | 3C | 30 | 7/0.100 | 0.23 | 0.80 | >=65 | 1.15 | 3.80 | 381.00 |
| 28 | 7/0.127 | 0.23 | 0.90 | >=65 | 1.15 | 4.00 | 239.00 | ||
| 26 | 7/0.16 | 0.23 | 1.00 | >=65 | 1.15 | 4.20 | 150.00 | ||
| 24 | 11/0.16 | 0.23 | 1.10 | >=65 | 1.15 | 4.40 | 94.20 | ||
| 22 | 17/0.16 | 0.23 | 1.30 | >=65 | 1.15 | 5.00 | 59.40 | ||
| 20 | 21/0.178 | 0.23 | 1.50 | >=65 | 1.15 | 5.30 | 36.70 | ||
| 18 | 34/0.178 | 0.23 | 1.80 | >=65 | 1.15 | 5.90 | 23.20 | ||
| UL20820 | 4C | 30 | 7/0.100 | 0.23 | 0.80 | >=65 | 1.15 | 4.00 | 381.00 |
| 28 | 7/0.127 | 0.23 | 0.90 | >=65 | 1.15 | 4.20 | 239.00 | ||
| 26 | 7/0.16 | 0.23 | 1.00 | >=65 | 1.15 | 4.50 | 150.00 | ||
| 24 | 11/0.16 | 0.23 | 1.10 | >=65 | 1.15 | 4.90 | 94.20 | ||
| 22 | 17/0.16 | 0.23 | 1.30 | >=65 | 1.15 | 5.20 | 59.40 | ||
| 20 | 21/0.178 | 0.23 | 1.50 | >=65 | 1.15 | 5.70 | 36.70 | ||
| UL20820 | 5C | 30 | 7/0.100 | 0.23 | 0.80 | >=65 | 1.15 | 4.20 | 381.00 |
| 28 | 7/0.127 | 0.23 | 0.90 | >=65 | 1.15 | 4.40 | 239.00 | ||
| 26 | 7/0.16 | 0.23 | 1.00 | >=65 | 1.15 | 4.50 | 150.00 | ||
| 24 | 11/0.16 | 0.23 | 1.10 | >=65 | 1.15 | 4.90 | 94.20 | ||
| 22 | 17/0.16 | 0.23 | 1.30 | >=65 | 1.15 | 5.50 | 59.40 | ||
| UL20820 | 6C | 30 | 7/0.100 | 0.23 | 0.80 | >=65 | 1.15 | 4.40 | 381.00 |
| 28 | 7/0.127 | 0.23 | 0.90 | >=65 | 1.15 | 4.80 | 239.00 | ||
| 26 | 7/0.16 | 0.23 | 1.00 | >=65 | 1.15 | 5.20 | 150.00 | ||
| 24 | 11/0.16 | 0.23 | 1.10 | >=65 | 1.15 | 5.50 | 94.20 | ||
|
|
