| Brand Name : | WCH Cable |
| Model Number : | WCH-UL20852 |
| Certification : | UL Certificate |
| Price : | USD 0.155 per meter |
| Payment Terms : | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability : | 3000000 meter per Month |
| Delivery Time : | 9 days for ready goods |
Extremely Flexible 3-Core Composite Cable Made By WCH Cable LSZH Compliant
Properties:
Conductor: High Purity of Copper Wire, Stranded or Solid, Optional
Insulation: HDPE, XLPE, FRPE, PP
Jacket: LSZH materials
Rated Temperature: 80C
Rated Voltage: 600V
Flame Retardant Grade: VW-1, FT-1, FT-2
Executed Standard: Appliance Wiring Material UL758.
Application: Internal wiring or external interconnection of electronic equipment (such as desk-type calculators, dictating machines, or X-ray equipment)
Parameters:
| Approval Style Number | Cores | Conductor | Insulation Thickness | Nom.Dia | Shield Coverage | Jacket Thickness | Overall Diameter | Conductor Resistance | |
| AWG | No/mm | mm | mm | % | mm | mm | Ω/KM | ||
| UL20851 | 2C | 30 | 7/0.100 | 0.23 | 0.80 | >=65 | 0.56 | 2.80 | 381.00 |
| 28 | 7/0.127 | 0.23 | 0.90 | >=65 | 0.56 | 3.10 | 239.00 | ||
| 26 | 7/0.16 | 0.23 | 1.00 | >=65 | 0.56 | 3.30 | 150.00 | ||
| 24 | 11/0.16 | 0.23 | 1.10 | >=65 | 0.56 | 3.50 | 94.20 | ||
| 22 | 17/0.16 | 0.23 | 1.30 | >=65 | 0.56 | 3.90 | 59.40 | ||
| 20 | 21/0.178 | 0.23 | 1.50 | >=65 | 0.56 | 4.30 | 36.70 | ||
| 18 | 34/0.178 | 0.23 | 1.80 | >=65 | 0.56 | 4.90 | 23.20 | ||
| 16 | 26/0.25 | 0.23 | 2.10 | >=65 | 0.56 | 5.50 | 14.60 | ||
| UL20851 | 3C | 30 | 7/0.100 | 0.23 | 0.80 | >=65 | 0.56 | 3.10 | 381.00 |
| 28 | 7/0.127 | 0.23 | 0.90 | >=65 | 0.56 | 3.20 | 239.00 | ||
| 26 | 7/0.16 | 0.23 | 1.00 | >=65 | 0.56 | 3.50 | 150.00 | ||
| 24 | 11/0.16 | 0.23 | 1.10 | >=65 | 0.56 | 3.70 | 94.20 | ||
| 22 | 17/0.16 | 0.23 | 1.30 | >=65 | 0.56 | 4.10 | 59.40 | ||
| 20 | 21/0.178 | 0.23 | 1.50 | >=65 | 0.56 | 4.50 | 36.70 | ||
| 18 | 34/0.178 | 0.23 | 1.80 | >=65 | 0.56 | 5.20 | 23.20 | ||
| UL20851 | 4C | 30 | 7/0.100 | 0.23 | 0.80 | >=65 | 0.56 | 4.50 | 381.00 |
| 28 | 7/0.127 | 0.23 | 0.90 | >=65 | 0.56 | 4.90 | 239.00 | ||
| 26 | 7/0.16 | 0.23 | 1.00 | >=65 | 0.56 | 5.00 | 150.00 | ||
| 24 | 11/0.16 | 0.23 | 1.10 | >=65 | 0.56 | 5.20 | 94.20 | ||
| 22 | 17/0.16 | 0.23 | 1.30 | >=65 | 0.56 | 5.70 | 59.40 | ||
| 20 | 21/0.178 | 0.23 | 1.50 | >=65 | 0.56 | 6.20 | 36.70 | ||
| UL20851 | 5C | 30 | 7/0.100 | 0.23 | 0.80 | >=65 | 0.56 | 4.70 | 381.00 |
| 28 | 7/0.127 | 0.23 | 0.90 | >=65 | 0.56 | 5.00 | 239.00 | ||
| 26 | 7/0.16 | 0.23 | 1.00 | >=65 | 0.56 | 5.30 | 150.00 | ||
| 24 | 11/0.16 | 0.23 | 1.10 | >=65 | 0.56 | 5.50 | 94.20 | ||
| 22 | 17/0.16 | 0.23 | 1.30 | >=65 | 0.56 | 6.10 | 59.40 | ||
| UL20851 | 6C | 30 | 7/0.100 | 0.23 | 0.80 | >=65 | 0.56 | 5.00 | 381.00 |
| 28 | 7/0.127 | 0.23 | 0.90 | >=65 | 0.56 | 5.30 | 239.00 | ||
| 26 | 7/0.16 | 0.23 | 1.00 | >=65 | 0.56 | 5.60 | 150.00 | ||
| 24 | 11/0.16 | 0.23 | 1.10 | >=65 | 0.56 | 5.90 | 94.20 | ||

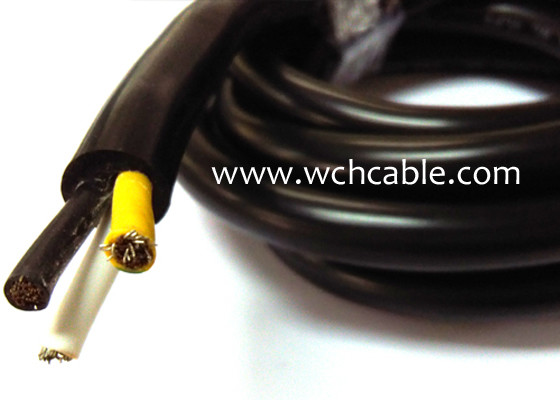

Product Images:
Extremely Flexible 3-Core Composite Cable Made By WCH Cable LSZH Compliant
Extruding Machines:
Certificate of High Purity Copper Wire Conductors:
Extremely Flexible 3-Core Composite Cable Made By WCH Cable LSZH Compliant
(Tag: Cable, UL cable, LSZH cable)
|
|
