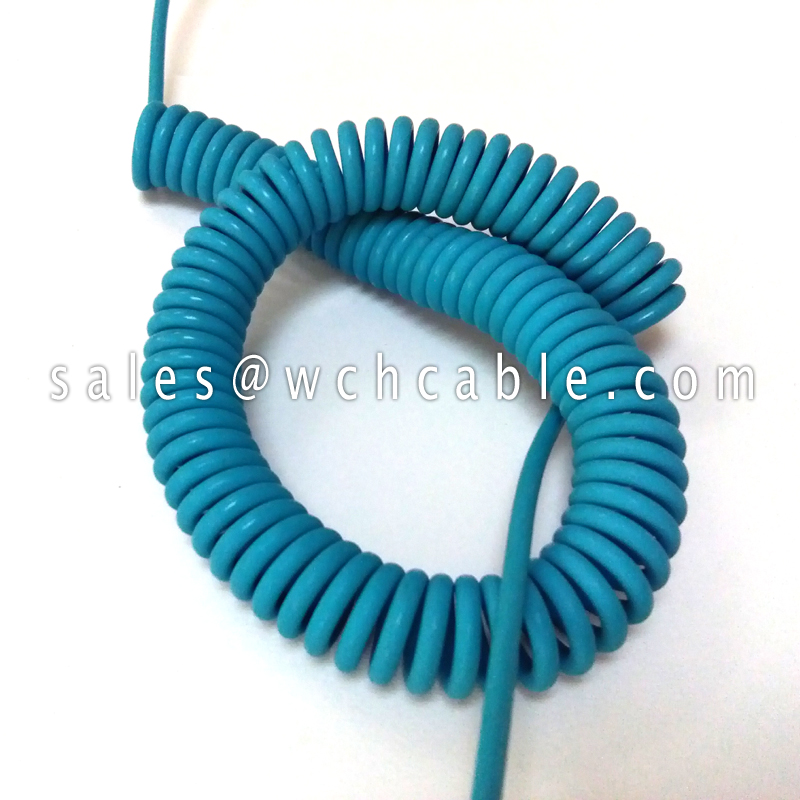

UL20318 Blue TPU Sheathed UL Approval Spiral Curly Cord 60C 300V
Conductor material: high purity copper wires
Insulation: Polypropylene PP
Sheath material: Thermoplastic Polyurethane TPU
Rated temperature: 60C degrees
Rated voltage: 300V.
Colour: Blue
Dimensions of spiral coiling length are to be determined per customer request.
| Style Number | Core Quantity | Copper Conductor | Insulation Thickness | Insulation Diameter | Jacket Thickness | Overall Diameter | Conductor Resistance | |
| AWG | No/mm | mm | mm | mm | mm | Ω/KM | ||
| UL20318 | 2C | 30 | 7/0.100 | 0.23 | 0.80 | 0.76 | 3.60 | 381.00 |
| 2C | 28 | 7/0.127 | 0.23 | 0.90 | 0.76 | 3.90 | 239.00 | |
| 2C | 26 | 7/0.16 | 0.23 | 1.00 | 0.76 | 4.00 | 150.00 | |
| 2C | 24 | 11/0.16 | 0.23 | 1.10 | 0.76 | 4.20 | 94.20 | |
| 2C | 22 | 17/0.16 | 0.23 | 1.30 | 0.76 | 4.60 | 59.40 | |
| 2C | 20 | 21/0.178 | 0.23 | 1.50 | 0.76 | 5.00 | 36.70 | |
| 2C | 18 | 34/0.178 | 0.23 | 1.80 | 0.76 | 5.60 | 23.20 | |
| 2C | 16 | 26/0.25 | 0.23 | 2.00 | 0.76 | 7.80 | 14.60 | |
| 3C | 30 | 7/0.100 | 0.23 | 0.80 | 0.76 | 5.50 | 381.00 | |
| 3C | 28 | 7/0.127 | 0.23 | 0.90 | 0.76 | 5.70 | 239.00 | |
| 3C | 26 | 7/0.16 | 0.23 | 1.00 | 0.76 | 5.90 | 150.00 | |
| 3C | 24 | 11/0.16 | 0.23 | 1.10 | 0.76 | 6.10 | 94.20 | |
| 3C | 22 | 17/0.16 | 0.23 | 1.30 | 0.76 | 6.50 | 59.40 | |
| 3C | 20 | 21/0.178 | 0.23 | 1.50 | 0.76 | 7.00 | 36.70 | |
| 3C | 18 | 34/0.178 | 0.23 | 1.80 | 0.76 | 7.60 | 23.20 | |
| 4C | 30 | 7/0.100 | 0.23 | 0.80 | 0.76 | 5.70 | 381.00 | |
| 4C | 28 | 7/0.127 | 0.23 | 0.90 | 0.76 | 5.90 | 239.00 | |
| 4C | 26 | 7/0.16 | 0.23 | 1.00 | 0.76 | 6.20 | 150.00 | |
| 4C | 24 | 11/0.16 | 0.23 | 1.10 | 0.76 | 6.50 | 94.20 | |
| 4C | 22 | 17/0.16 | 0.23 | 1.30 | 0.76 | 6.90 | 59.40 | |
| 4C | 20 | 21/0.178 | 0.23 | 1.50 | 0.76 | 7.40 | 36.70 | |
| 5C | 30 | 7/0.100 | 0.23 | 0.80 | 0.76 | 6.00 | 381.00 | |
| 5C | 28 | 7/0.127 | 0.23 | 0.90 | 0.76 | 6.30 | 239.00 | |
| 5C | 26 | 7/0.16 | 0.23 | 1.00 | 0.76 | 6.40 | 150.00 | |
| 5C | 24 | 11/0.16 | 0.23 | 1.10 | 0.76 | 6.80 | 94.20 | |
| 5C | 22 | 17/0.16 | 0.23 | 1.30 | 0.76 | 7.40 | 59.40 | |
| 6C | 30 | 7/0.100 | 0.23 | 0.80 | 0.76 | 6.40 | 381.00 | |
| 6C | 28 | 7/0.127 | 0.23 | 0.90 | 0.76 | 6.70 | 239.00 | |
| 6C | 26 | 7/0.16 | 0.23 | 1.00 | 0.76 | 7.00 | 150.00 | |
| 6C | 24 | 11/0.16 | 0.23 | 1.10 | 0.76 | 7.30 | 94.20 | |
Diagram Example of UL Approval Spiral Curly Cord
| Spiral Cable Construction | Spiral Length (unexpanded) | (mm) | 80 |
| Straight Ends | (mm/mm) | 610/350 | |
| Extension Ratio | 1:3.8 | ||
| Spiral Outer Ø | (mm) | 17.5 | |
| Tail Direction | 180 degree | ||
| End Treatment | Optional | Cut Flat, Stripped/Tinned | |
| Electrical Capability | Working Voltage | (V) | 300 |
| Temperature Range | (°C) | 60 | |
| Test Voltage | (V) | 2000/3000 | |
| Nominal Voltage | (V) | 300 | |
| Conductor Resistance | (Ω/KM at 20°C) | 14.60 | |
| Insulation Resistance | (MΩ/KM at 20°C) | 100 | |
| Standard & Use | UL Style Number | Optional | Per UL20318 |
| CUL Standard | II A | ||
| Flammability | FT1, VW-1 | ||
| Raw Cable Construction | Conductor Size | (AWG) | 16 |
| Insulation Material | PP (RoHS) | ||
| Insulation Diameter | (mm) | 2.20 | |
| Conductor Quantity | 2 Cores | ||
| Assembly | Twisted | ||
| Overall Diameter | (mm) | 5.30 | |
| Jacket Material | TPU (RoHS) | ||
| Surface Effect | Matt Blue |
The demonstrated parameters for reference only. Please consult our customer service to customize any other parameter you demand.
Tag: UL20318, spiral cable
|
|
