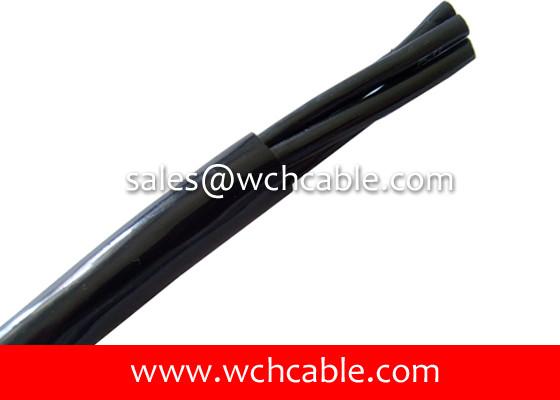

    UL21238 Traffic Control Enclosure Cable PUR Sheath Rated 80C 600V

    Ask Lasest Price
    Brand Name : WCH Cable
    Model Number : UL21238
    Certification : UL, Cul, AWM
    Price : USD 0.55 per meter
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 100,000 meters per week
    Delivery Time : 9 days for ready goods
    • Product Details
    • Company Profile

    UL21238 Traffic Control Enclosure Cable PUR Sheath Rated 80C 600V

    UL21238 Traffic Control Enclosure Cable PUR Sheath Rated 80C 600V


    Conductor: High Purity Annealed Tinned Stranded Copper Wire
    Insulation: HDPE / High Density Polyethylene, or other AWM complying materials.
    Jacket: PUR / Polyurethane
    Rated Temperature: 80 Deg C
    Rated Voltage: 600V
    Applied Standard: UL758, UL21238


    Properties of UL21238 Traffic Control Enclosure Cable PUR Sheath Rated 80C 600V


    Style NumberCore QuantityCopper ConductorInsulation ThicknessInsulation DiameterJacket ThicknessOverall DiameterConductor Resistance
    AWGNo/mmmmmmmmmmΩ/KM
    UL212382C307/0.1000.230.800.383.20381.00
    2C287/0.1270.230.900.383.40239.00
    2C267/0.160.231.000.383.60150.00
    2C2411/0.160.231.100.383.8094.20
    2C2217/0.160.231.300.384.2059.40
    2C2021/0.1780.231.500.384.6036.70
    2C1834/0.1780.231.800.385.2023.20
    2C1626/0.250.232.000.385.8014.60
    3C307/0.1000.230.800.383.40381.00
    3C287/0.1270.230.900.383.50239.00
    3C267/0.160.231.000.383.80150.00
    3C2411/0.160.231.100.384.0094.20
    3C2217/0.160.231.300.384.4059.40
    3C2021/0.1780.231.500.384.8036.70
    3C1834/0.1780.231.800.385.5023.20
    4C307/0.1000.230.800.384.80381.00
    4C287/0.1270.230.900.385.10239.00
    4C267/0.160.231.000.385.30150.00
    4C2411/0.160.231.100.385.5094.20
    4C2217/0.160.231.300.386.0059.40
    4C2021/0.1780.231.500.386.5036.70
    5C307/0.1000.230.800.385.00381.00
    5C287/0.1270.230.900.385.30239.00
    5C267/0.160.231.000.385.60150.00
    5C2411/0.160.231.100.385.8094.20
    5C2217/0.160.231.300.386.4059.40
    6C307/0.1000.230.800.385.30381.00
    6C287/0.1270.230.900.385.60239.00
    6C267/0.160.231.000.385.90150.00
    6C2411/0.160.231.100.386.2094.20

    UL21238 Traffic Control Enclosure Cable PUR Sheath Rated 80C 600V


    Tag: pur cable, pur sheathed cable
