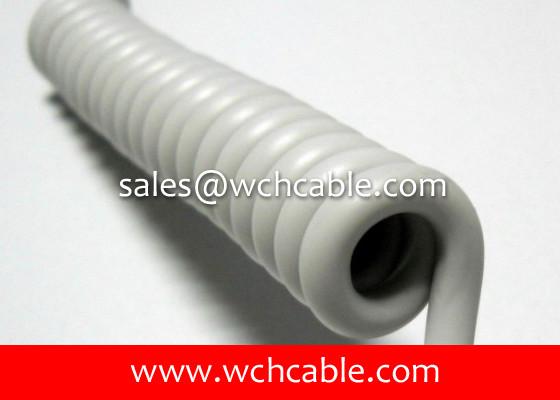

    LSZH Compliant TPEE-jacketed Spring Spiral Cable UL20841, UL20820, UL20806

    Ask Lasest Price
    Brand Name : WCH Cable
    Model Number : UL20841
    Certification : UL Certificate
    Price : 0.211 per piece
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 1000000 pcs per month
    Delivery Time : 9 days for ready goods
    • Product Details
    • Company Profile

    LSZH Compliant TPEE-jacketed Spring Spiral Cable UL20841, UL20820, UL20806

    Spiral Cable

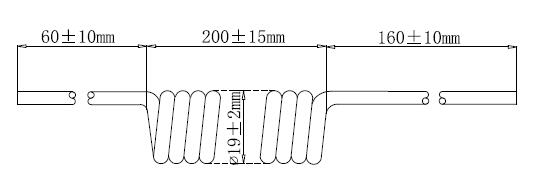

    Construction
    Spiral Length (unexpanded)(mm)200
    Straight Ends(mm/mm)60/160
    Extension Ratio 1:3.8
    Spiral Outer Ø(mm)19
    Tail Direction 180 degree
    End TreatmentOptionalCut Flat, Stripped/Tinned
    Electrical
    Capability
    Working Voltage(V)300
    Temperature Range(°C)80, 90, 105
    Test Voltage(V)2000/3000
    Nominal Voltage(V)300
    Conductor Resistance(Ω/KM at 20°C)36.7
    Insulation Resistance(MΩ/KM at 20°C)100
    Standard & UseUL Style NumberOptionalPer UL20841, UL20820, UL20806
    CUL Standard II A
    Flammability VW-1
    Raw Cable
    Construction
    Conductor Size(AWG)20
    Insulation Material TPEE (RoHS)
    Insulation Diameter(mm)1.600
    Conductor Quantity 3 Cores
    Assembly Stranded
    Overall Diameter(mm)5.60
    Jacket Material TPE (RoHS)
    Surface Effect Matt Gray
